In this tutorial, I am going to show you how to integrate Spring Boot EhCache.

Spring Boot Ehcache:

Doc Says: Ehcache is an open source, a standards-based cache that boosts an application performance offloads your database, and simplifies scalability. It’s the most widely-used Java-based cache because it’s robust, proven, full-featured, and integrates with other popular libraries and frameworks like Spring.

Spring Boot Ehcache Example:

A complete example is to read a list of items from the MySQL database initially, and the next subsequent calls should get the data from the EhCache.

Technologies used:

  • spring-boot-starter-2.0.5
  • spring-boot-starter-jdbc
  • ehcache 2.9.0
  • Java 8
  • Maven

Project Structure:

Spring Boot EhCache Example

Required Dependencies:

Include ehcache dependency in pom.xml

pom.xml
<dependency>
  <groupId>net.sf.ehcache</groupId>
  <artifactId>ehcache</artifactId>
  <version>2.9.0</version>
</dependency>

Complete pom.xml:

Including all spring boot and MySQL dependencies.

pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.onlinetutorialspoint</groupId>
  <artifactId>Springboot_EHCache_Example</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <packaging>jar</packaging>
  <name>Springboot_EHCache_Example</name>
  <description>Spring Boot EhCache Example</description>
  <parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.0.5.RELEASE</version>
    <relativePath/> <!-- lookup parent from repository -->
  </parent>
  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
    <java.version>1.8</java.version>
  </properties>
  <dependencies>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-cache</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-jdbc</artifactId>
    </dependency>
    <dependency>
      <groupId>net.sf.ehcache</groupId>
      <artifactId>ehcache</artifactId>
      <version>2.9.0</version>
    </dependency>
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <scope>runtime</scope>
    </dependency>
  </dependencies>
  <build>
    <plugins>
      <plugin>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-maven-plugin</artifactId>
      </plugin>
    </plugins>
  </build>
</project>

Creating application.properties with all database related information, enabling the spring boot actuator endpoints to see the ehcache size details and spring cache declarations.

application.properties
# Database
server.port=8080
spring.datasource.driver-class-name: com.mysql.jdbc.Driver
spring.datasource.url: jdbc:mysql://localhost:3306/otp
spring.datasource.username: root
spring.datasource.password: 1234

management.endpoints.web.exposure.include=*
spring.cache.cache-names=itemCache
spring.cache.type=ehcache
spring.cache.ehcache.config=classpath:ehcache.xml

Creating an ehcache.xml file containing ehcache configuration.  Find more about ehcache configuration here.

ehcache.xml
<ehcache xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:noNameSpaceSchemaLocation="ehcache.xsd"
         updateCheck="true"
         monitoring="autodetect"
         dynamicConfig="true">
    <diskStore path="java.io.tmpdir"/>
    <cache name="itemCache"
            maxEntriesLocalHeap="1000"
            maxEntriesLocalDisk="1000"
            eternal="false"
            diskSpoolBufferSizeMB="20"
            timeToIdleSeconds="300"
            timeToLiveSeconds="600"
            memoryStoreEvictionPolicy="LFU"
            transactionalMode="off">
        <persistence strategy="localTempSwap"/>
    </cache>

</ehcache>

Configuring EhCache in Spring boot application: @EnableCaching annotation is used to enabling the caching feature declaratively.

I am creating EhCacheManagerFactory bean by passing the ehcache.xml configuration file.

EHCacheConfig.java
package com.onlinetutorialspoint.config;

import org.springframework.cache.CacheManager;
import org.springframework.cache.annotation.EnableCaching;
import org.springframework.cache.ehcache.EhCacheCacheManager;
import org.springframework.cache.ehcache.EhCacheManagerFactoryBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.io.ClassPathResource;

@EnableCaching
@Configuration
public class EHCacheConfig {

    @Bean
    public CacheManager cacheManager(){
        return new EhCacheCacheManager(ehCacheManagerFactory().getObject());
    }

    @Bean
    public EhCacheManagerFactoryBean ehCacheManagerFactory(){
        EhCacheManagerFactoryBean ehCacheBean = new EhCacheManagerFactoryBean();
        ehCacheBean.setConfigLocation(new ClassPathResource("ehcache.xml"));
        ehCacheBean.setShared(true);
        return ehCacheBean;
    }

}

Creating Item rest controller, responsible for reading data from ItemCache.

ItemController.java
package com.onlinetutorialspoint.controller;

import com.onlinetutorialspoint.cache.ItemCache;
import com.onlinetutorialspoint.model.Item;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.*;

@RestController
public class ItemController {

    @Autowired
    ItemCache itemCache;
    @GetMapping("/item/{itemId}")
    @ResponseBody
    public ResponseEntity<Item> getItem(@PathVariable int itemId) throws Exception{
        Item item = itemCache.getItem(itemId);
        return new ResponseEntity<Item>(item, HttpStatus.OK);
    }

    @PutMapping("/updateItem")
    @ResponseBody
    public ResponseEntity<Item> updateItem(@RequestBody Item item){
        if(item != null){
            itemCache.updateItem(item);
        }
        return new ResponseEntity<Item>(item, HttpStatus.OK);
    }

    @DeleteMapping("/delete/{id}")
    @ResponseBody
    public ResponseEntity<Void> deleteItem(@PathVariable int id){
        itemCache.deleteItem(id);
        return new ResponseEntity<Void>(HttpStatus.ACCEPTED);
    }
}

Creating  ItemCache, responsible for reading items from a database using JdbcTemplate and making the method as @Cachable.

ItemCache.java
package com.onlinetutorialspoint.cache;

import com.onlinetutorialspoint.model.Item;
import com.onlinetutorialspoint.repo.ItemRepository;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cache.annotation.CacheEvict;
import org.springframework.cache.annotation.CachePut;
import org.springframework.cache.annotation.Cacheable;
import org.springframework.stereotype.Component;

@Component
public class ItemCache {

    @Autowired
    ItemRepository itemRepo;

    @Cacheable(value="itemCache", key="#id")
    public Item getItem(int id) throws Exception{
        System.out.println("In ItemCache Component..");
        return itemRepo.getItem(id);
    }

    @CacheEvict(value="itemCache",key = "#id")
    public int deleteItem(int id){
        System.out.println("In ItemCache Component..");
        return itemRepo.deleteItem(id);
    }

    @CachePut(value="itemCache")
    public void updateItem(Item item){
        System.out.println("In ItemCache Component..");
        itemRepo.updateItem(item);
    }
}

@Cachable: Is used to adding the cache behaviour to a method. We can also give the name to it, where the cache results would be saved.
@CacheEvict: Is used to remove the one or more cached values. allEntries=true parameter allows us to remove all entries from the cache.
@CachePut: Is used to update the cached value.

Creating an Item model

Item.java
package com.onlinetutorialspoint.model;

import java.io.Serializable;

public class Item implements Serializable {
    private int id;
    private String name;
    private String category;

    public Item() {
    }

    public Item(int id, String name, String category) {
        this.id = id;
        this.name = name;
        this.category = category;
    }

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getCategory() {
        return category;
    }

    public void setCategory(String category) {
        this.category = category;
    }
}

Creating Item repository

ItemRepository.java
package com.onlinetutorialspoint.repo;

import com.onlinetutorialspoint.model.Item;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.jdbc.core.BeanPropertyRowMapper;
import org.springframework.jdbc.core.JdbcTemplate;
import org.springframework.stereotype.Repository;

@Repository
public class ItemRepository {

    @Autowired
    JdbcTemplate template;

    /*Getting a specific item by item id from table*/
    public Item getItem(int itemId){
        String query = "SELECT * FROM ITEM WHERE ID=?";
        return template.queryForObject(query,new Object[]{itemId},new BeanPropertyRowMapper<>(Item.class));
    }

    /*delete an item from database*/
    public int deleteItem(int id){
        String query = "DELETE FROM ITEM WHERE ID =?";
        int size = template.update(query,id);
        return size;
    }

    /*update an item from database*/
    public void updateItem(Item item){
        String query = "UPDATE ITEM SET name=?, category=? WHERE id =?";
        template.update(query,
                new Object[] {
                        item.getName(),item.getCategory(), Integer.valueOf(item.getId())
                });
    }

}

Spring Boot main class

SpringBootApplication.java
package com.onlinetutorialspoint;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class SpringbootApplication {

  public static void main(String[] args) {
    SpringApplication.run(SpringbootApplication.class, args);
  }
}

Run it:

Console
> mvn spring-boot:run

  .   ____          _            __ _ _
 /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
 \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
  '  |____| .__|_| |_|_| |_\__, | / / / /
 =========|_|==============|___/=/_/_/_/
 :: Spring Boot ::        (v2.0.5.RELEASE)

2018-10-02 21:33:34.975  INFO 9448 --- [           main] c.o.SpringbootApplication                : Starting SpringbootApplication on DESKTOP-RN4SMHT with PID 9448 (E:\work\Springboo
t_EHCache_Example\target\classes started by Lenovo in E:\work\Springboot_EHCache_Example)
2018-10-02 21:33:34.993  INFO 9448 --- [           main] c.o.SpringbootApplication                : No active profile set, falling back to default profiles: default

.........
.........

Accessing Spring Boot actuator endpoint to get the cache size.

Spring Boot EhCache initial Size

We can observe the initial cache size as zero.

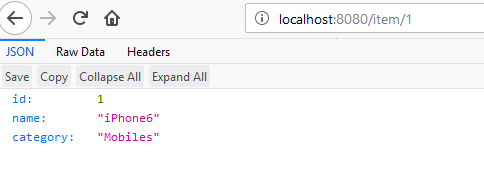

Accessing item from DB.

Spring Boot Cache Reading 1 Item

We can observe the log statements flow.  For the very first call, the data flow happened from Controller -> ItemCache -> Repository. After fetching the data from the database, it will be stored in the cache so that the next subsequent calls will be fetched from the cache itself.

Spring Boot Cache output

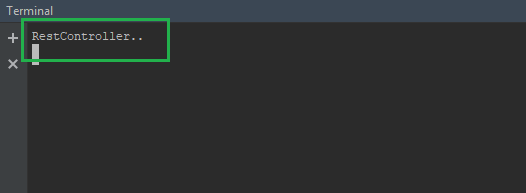

If we ask the same item 1 again we will get this from the cache, because of this we will see the RestController.. statement in logs like below.

Spring Boot Cache output new

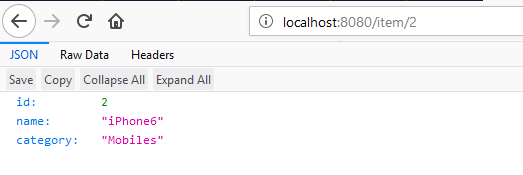

Accessing item 2,

Cache Reading 2 Item

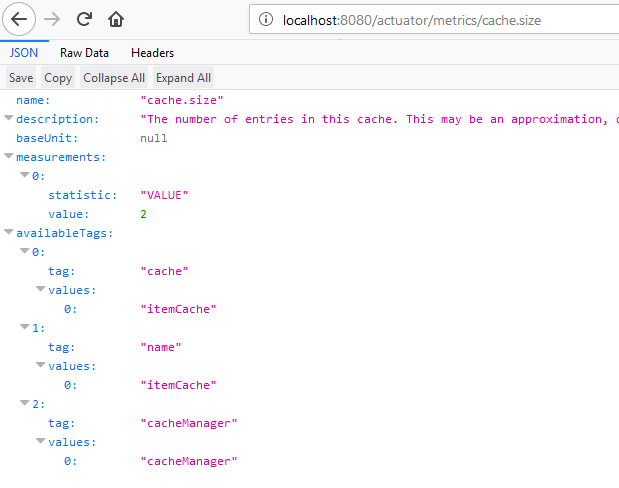

After accessing the item 1 and 2, we can observe the cache growth in the actuator.

Spring Boot Cache after 2 Size

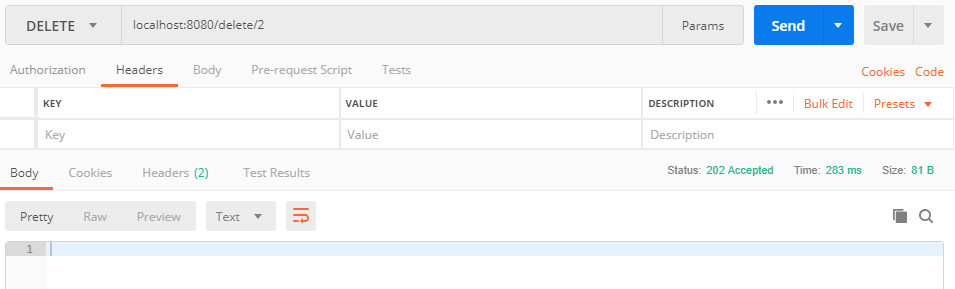

Deleting Item 2 from the database.

Spring Boot Cache Deleting

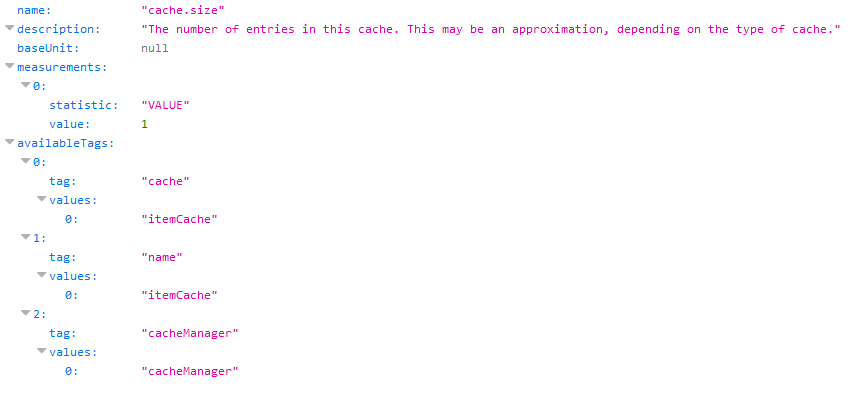

After successful deletion of Item, the cache automatically gets updated as we used @CacheEvect.

Spring Boot Cache Deleting Cache

Resources:

Happy Learning 🙂

Download Example
